As is well-known,the Wheel-mounted Mobile of Liming Heavy industry including three models,such as Mobile Jaw Crusher,Mobile Cone Crusher,Mobile Impact Crusher. I will introduce the primary Mobile Jaw Crusher to you.

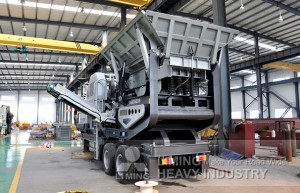

Wheel-mounted Mobile Jaw Crusher’s Overview:

Wheeled Jaw crusher is one kind of Wheel-mounted Type Mobile Crushing & Screening plant. According to the different crushing technics requirement, we can design the flow as: crushing firstly and then screening, or screening firstly and then crushing. The stone crushing station can be assembled as primary crushing and secondary crushing and also can be assembled as assembled as primary crushing, intermediate crushing, and tertiary crushing. It is so flexible that can satisfy the customers’ various demand.

Wheel-mounted Mobile Jaw Crusher’s Features:

1. World-level manufacturing technology is adopted, and highest-level raw material is used.

2. Central lubricating device are installed on the machine, so the bearing is easy to be lubricated.

3. Adjustment of the discharge part is more convenient.
The adjustment methods: gasket adjustment, hydraulic assistant adjustment, wedge block and wedge hydraulic adjustment.

4. More advanced movable jaw assembly lengthens life of crusher.
Movable jaw assembly is made from cast piece with high-quality, is driven by two large flying wheels which are made from cast steel. Moreover, heavy eccentric shaft is processed by forged mold. All of these make the JC series jaw crusher extremely reliable.

5. Integral cast steel structure is adopted for bearing seat. Integral cast steel bearing matches well with the crusher frame, at the same time, radial strength of the bearing seat is highly strengthened. However, the separate bearing seat does not have this advantage.

6. Finite element analysis technology is adopted to make the crusher much stronger.

7. Crusher chamber adopts “V” structure which could make actual feed width comply with the nominal one.

8. Bearing with larger model and higher load are used. All JC jaw crusher is equipped with larger bearing compared with same model of normal jaw crusher. Its higher load capacity and effective oil seal will lengthen the life of bearing.

9. A newly designed tooth-shape side plate, makes the available area of jaw plate longer, and enhances the capacity.

10. Pressing bar and support type are used to fix jaw plate.

11. Heavy type protecting plate is intalled for bearing seat, accidental damage of bearing seat is avoided.

12. Supporting bar under jaw plate protects movable jaw and frame from being worn down.

Wheel-mounted Mobile Jaw Crusher’s Highlights:

(1) Quick road transportation.

(2) Lower transportation cost.

(3) Integrate equipment into one.

(4) High flexibility and efficiency.

(5) Easy to adjust and to collocate.

(6) Reliable performance and convenient maintenance.

Wheel-mounted Mobile Jaw Crusher’s Working principle:

The wheeled jaw crusher is fitted with a patented hydraulic system with a constant control over the pressure within the jaws of the crusher. This means in case of any peak pressure within the crusher housing no damage can be done to the bearings or the shaft of the wheeled jaw crusher, instead the mobile jaw crusher opens automatically. Also the feed material steam is adjusted according the pressure inside the jaws. This pressure may depend on the different sort of material to be crushed.
