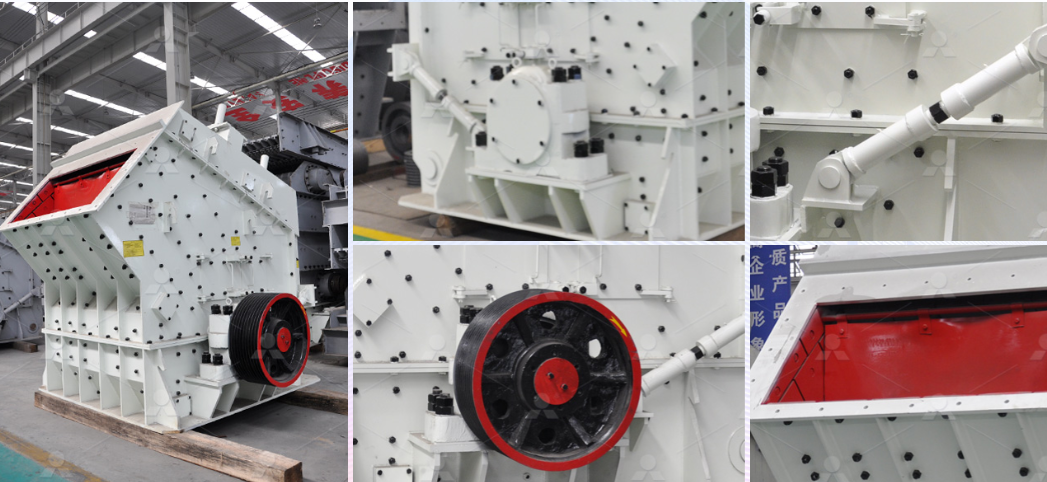

The counterattack crushing function has a variety of rough, medium, fine materials (granite, limestone, concrete, etc.) with a side length of not more than 500mm and the pressure resistance. Production of artificial sand and gravel.
Scope of application: sand and gravel material field, mining mining, coal mine mining, concrete mixing station, dry powder mortar, power plant desulfurization, quartz sand, etc.
Treatment materials: river pebbles, granite, basalt, iron ore, limestone, quartz stone, Huilu rock, etc.
Specifications – Technical Data
| Model |
Size of rotor (mm) |
Feed opening (mm) |
Max. feed size (mm) |
Capacity (t/h) |
Power of Motor (kW) |
Weight (t) |
Overall Dimensions (mm) |
| PF1010 | Φ1040×1000 | 510×1040 | 200 | 50-90 | 75(100) | 12.5 | 2455×2090×2800 |
| PF1210 | Φ1260×1050 | 465×1155 | 250 | 70-130 | 110(150) | 16 | 2582×2052×2810 |
| PF1214 | Φ1260×1400 | 465×1485 | 300 | 90-180 | 132(175) | 18.5 | 2582×2410×2810 |
| PF1315 | Φ1280×1500 | 700×1540 | 300 | 120-250 | 200(270) | 21 | 2930×2765×3053 |
