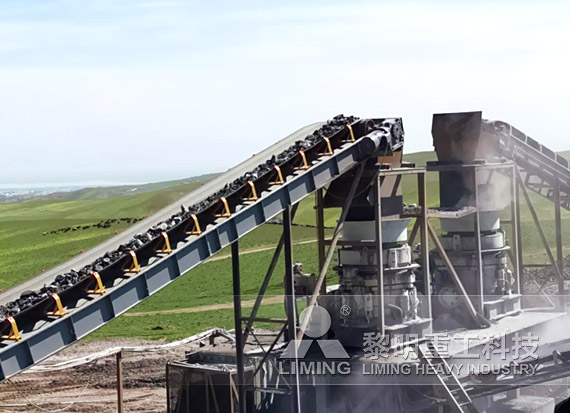

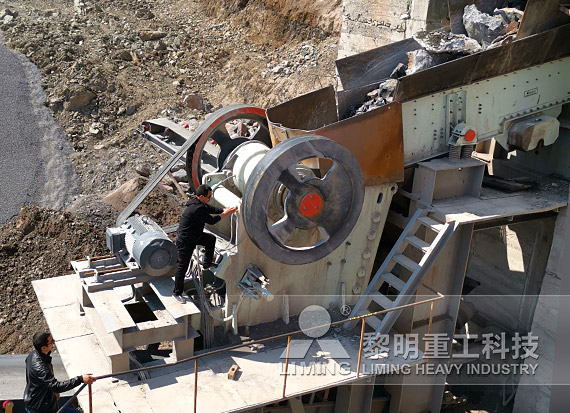

Our rock crusher production line is deeply popular in Saudi Arabia, providing efficient solutions for the local mining and construction industries. The production line adopts the 2F5X1245 vibration to the feeder, introduced the material from the fugitive, and screened the waste through the bars and screens. The material of 20-100mm directly enters the transit material, while the materials above 100mm are first crushed by the JC840X1100 jaw crusher.

After the primary crushing material, together with the 20-100mm material in the transit material, the HPT300C multi-cylinder hydraulic cone is broken together for secondary crushing. The second-level crushed materials were sieved through 3YZS1860 vibration sieve to obtain finished materials of 0-5mm, 5-10mm, and 10-20mm. For materials greater than 20mm, further send it to the HPT300F multi -cylinder hydraulic cone contest broken for three -level crushing (fine shattered). The three-level crushed materials were sieved through 3YZS2160 vibration, and also obtained 0-5mm, 5-10mm, and 10-20mm finished materials.

This production line can deal with 250-300 tons/hour rocks. The size of the feed inlet is less than 700mm, and the granularity of the dismissal meets the requirements of 0-5mm, 5-10mm, and 10-20mm. We provide this efficient and reliable production line solution to manufacturers who want to buy crusher and production line to meet their material processing needs.

If you have any questions about the broken production line, please consult us online!
