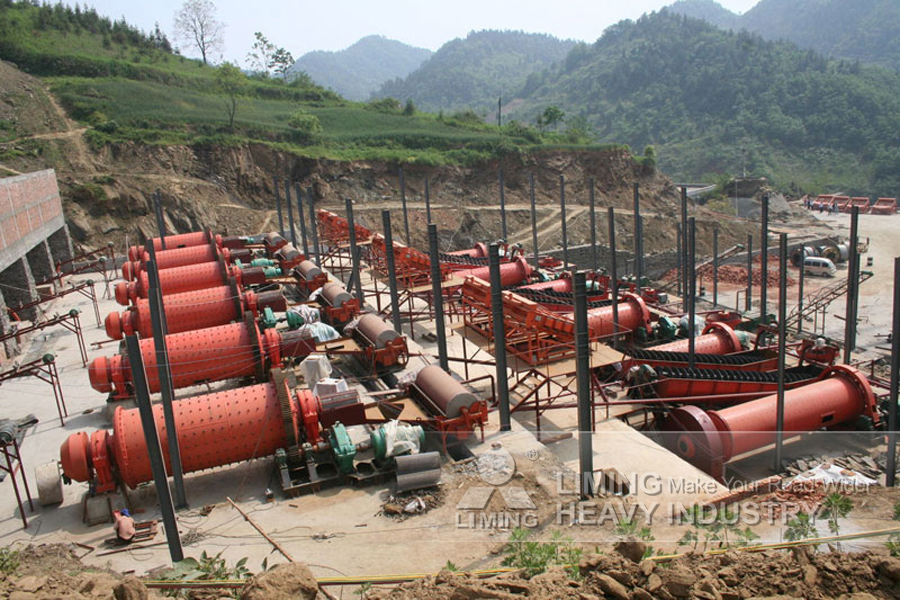

Ball mill belongs to the media mill, it need to iron balls, ceramic balls or steel balls as grinding media.Ball mill is widely used in fine grinding of medium hardness material in the concentrator, refractory plants, cement plants, glass and other industrial sectors.
The ball mill is a key equipment to grind the crushed materials, and the ball mill is widely used in powder-making production line including cement, silicate, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal, glass ceramics, etc, and the ball mill can grind various ores and other materials with dry type and wet type. There are two kinds of ball mill, grate type and overfall type due to different ways of discharging material.
<
| Model | Speed of bucket (r/min) | Weight of ball (t) | Size of feed opening (mm) | size of outputting feed (mm) | Production (t/h) | Power (kW) | Weight (t) |
| Ф900×1800 | 42 | 1.4 | ≤20 | 0.075-0.89 | 0.65-2 | 18.5 | 3.6 |
| Ф900×3000 | 41 | 2.5 | ≤20 | 0.075-0.89 | 1.1-3.5 | 22 | 4.5 |
| Ф1200×2400 | 36 | 3.5 | ≤25 | 0.075-0.6 | 1.5-4.8 | 30 | 11.5 |
| Ф1200×3000 | 32 | 5 | ≤25 | 0.075-0.4 | 1.6-5 | 45 | 12.8 |
| Ф1200×4500 | 32 | 5.5 | ≤25 | 0.075-0.4 | 1.6-5.8 | 55 | 13.8 |
| Ф1500×3000 | 31 | 6.8 | ≤25 | 0.075-0.4 | 2-7 | 75 | 17 |
| Ф1500×4500 | 27 | 10.5 | ≤25 | 0.075-0.4 | 3.5–8 | 110 | 21 |
| Ф1500×5700 | 27 | 15 | ≤25 | 0.075-0.4 | 3.5-10 | 132 | 24.7 |
| Ф1830×3000 | 26 | 13 | ≤25 | 0.075-0.4 | 4-12 | 160 | 28 |
| Ф1830×6400 | 26 | 23 | ≤25 | 0.075-0.4 | 6.5-15 | 210 | 34 |
| Ф1830×7000 | 26 | 25 | ≤25 | 0.075-0.4 | 6.5-22 | 210 | 36 |
| Ф2200×5500 | 21 | 30 | ≤25 | 0.075-0.4 | 10-22 | 370 | 48.5 |
| Ф2200×6500 | 21 | 30 | ≤25 | 0.075-0.4 | 14-50 | 380 | 52.8 |
| Ф2200×7500 | 21 | 33 | ≤25 | 0.075-0.4 | 16-50 | 380 | 56 |
| Φ2200×9500 | 21 | 38 | ≤25 | 0.074-0.4 | 18-60 | 475 | 62 |
Notice: Any change of Ball Mill technical data shall not be advised additionally.
