small gold slag beneficiation plant demand the machines as follows:

Gold slag beneficiation plant production line processing equipment including crushing equipment (which including the PEW Series jaw crusher , Hydraulic cone crusher, PF series impact crusher, etc.), grinding equipment ( LM Series vertical mill , Raymond mill, ultrafine mill, ball mill, etc.), grading machine, mixing barrels, chute, flotation machine and so on.

Small gold slag beneficiation plant r aw material: Large gold mine, Gold slag, gold ore

Small gold slag beneficiation plant capacity: 100ton-560ton per hour

The Crushing Sections: The gold ore from the mine site is always with size 0-400mm or 0-600mm after blasting. We use the crushing plant to crush the raw gold ore into 0-8 or 0-10mm.

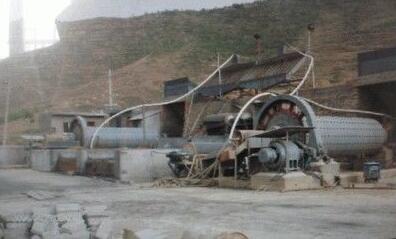

Primary Grinding and Classifying Section: The gold ore with the size 0-8mm or 0-10mm will be fed into the ball mill. At the end the powder will be mixed together in the ball mill as slurry to send to the spiral classifier.

The Flotation Processing Sections: The slurry from the agitator wil l be concentrated in the flotation machines. For the flotation processing sections like how many stages for concentration flotation and how many stages for scavenging flotation and the PH value, the type of collector, inhibitor, foaming agent and its dosage should be fixed by the dressing test.
