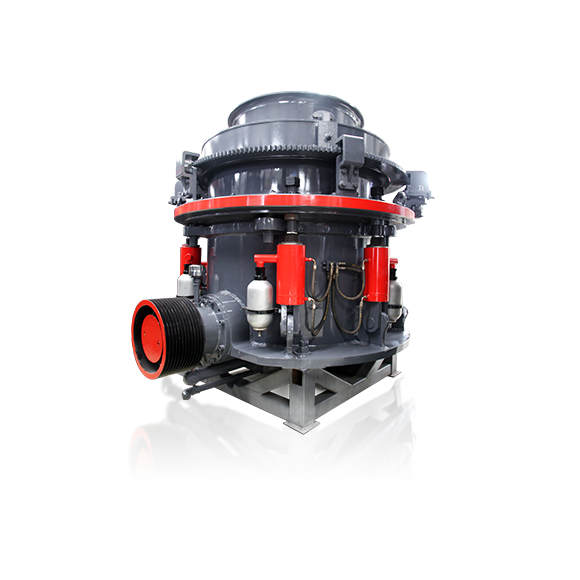

Cone crushers are very suitable for size reduction and shaping in the downstream of a crushing circuit.
Cone crushers are equipped with a hydraulic setting adjustment system, which allows adjusting the crusher settings to fully match the material, feed size, and capacity requirements.
Embodying the tried and tested design elements of the original live-shaft cone crushers with added hydraulic and control functionality, these crushers offer a proven approach to processing primary crushed ores, quarry rock products and pebbles.
Applications: Aggregate field,concrete mixing plant,dry mortar plant desulfurization,quartz sand,etc.
Specifications – Technical Data
| Model | Cavity (coarse/fine) | Close Side feed opening(mm) | Min CSS (mm) | Capacity (t/h) | Power (kW) |
| HPT100 | C1 Extra Coarse | 140 | 19 | 75-140 | 90 |
| C2 Coarse | 100 | 13 | 60-110 | ||
| M Medium | 70 | 9 | 52-100 | ||
| F1 Fine | 50 | 9 | 50-95 | ||
| F2 Extra Fine | 20 | 6 | 45-90 | ||
| HPT200 | C2 Coarse | 185 | 19 | 145-250 | 160 |
| M Medium | 125 | 16 | 135-235 | ||
| F1 Fine | 95 | 13 | 115-220 | ||
| F2 Extra Fine | 75 | 10 | 90-190 | ||
| HPT300 | C1 Extra Coarse | 230 | 25 | 220-440 | 250 |
| C2 Coarse | 210 | 19 | 190-380 | ||
| M Medium | 150 | 16 | 175-320 | ||
| F1 Fine | 105 | 13 | 145-280 | ||
| F2 Extra Fine | 80 | 10 | 110-240 | ||
| HPT400 | C1 Extra Coarse | 295 | 30 | 300-630 | 315 |
| C2 Coarse | 251 | 25 | 285-560 | ||
| M Medium | 196 | 20 | 250-490 | ||
| F1 Fine | 110 | 13 | 180-345 | ||
| F2 Extra Fine | 90 | 10 | 135-320 | ||
| HPT500 | C1 Extra Coarse | 330 | 38 | 425-790 | 400 |
| C2 Coarse | 290 | 30 | 370-700 | ||
| M Medium | 210 | 22 | 330-605 | ||
| F1 Fine | 135 | 16 | 270-535 | ||
| F2 Extra Fine e | 95 | 13 | 220-430 | ||
| HPT800 | C1 Extra Coarse | 350 | 38 | 570-1200 | 630 |
| C2 Coarse | 299 | 32 | 520-1050 | ||
| M Medium | 265 | 25 | 475-950 | ||
| F1 Fine | 220 | 16 | 370-800 | ||
| F2 Extra Fine | 150 | 13 | 310-600 |
