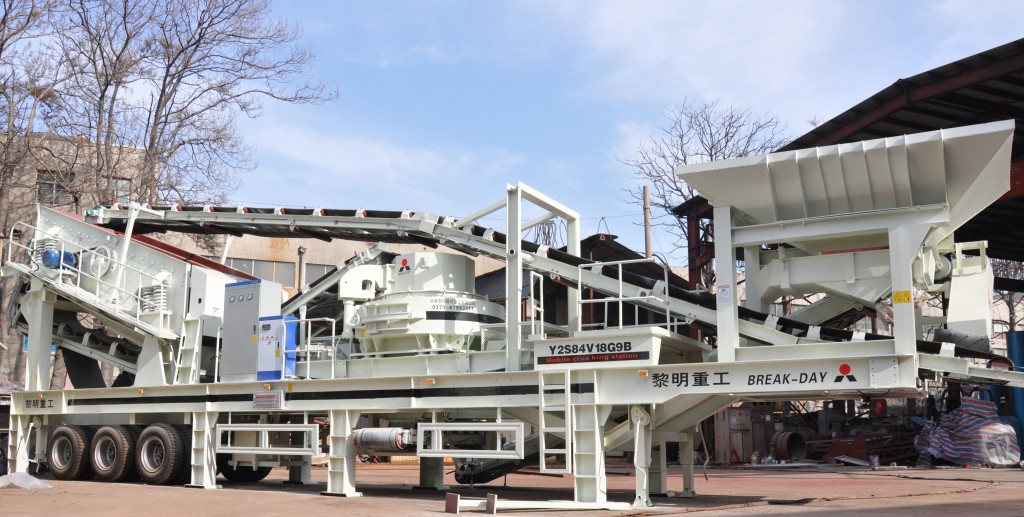

Wheeled Crusher is often used in the site where you may often need to change working site, especially when you process stones used in high way, railway and so on. Therefore, Mobile t Crusher needs to be designed specifically for customers according to different materials, capacity and requirements of the final products. Wheeled Crusher can be applied in the industry of metallurgy, chemical, building materials, water power station, etc. The integration unit is easy for installation and maintenance. This makes the whole Wheeled Crusher Plant has the features of longer working time and higher durability.
| Technical Data\Model | YG938 F1210 | YG938 FW1214Ⅱ | YG1142 F1214 | YG1142 F315 | YG1142 FW315Ⅱ | YG1349 FW318Ⅱ | |
| Transportation size(mm) | 11900×2550
×4000 |
11900×2650
×3850 |
13100×2650
×4000 |
13500×2780
×4150 |
13500×2780
×4150 |
15200×2950
×4300 |
|
| Weight(t) | 35 | 41 | 38 | 47 | 52 | 61 | |
| Tire Configuration | Dualaxial | Dualaxial | Triaxial | Triaxial | Triaxial | Triaxial | |
| Impact Crusher | PF-1210 | PFW-1214Ⅱ | PF-1214 | PF-1315 | PFW-1315Ⅱ | PFW-1318Ⅱ | |
| The Maximum Feeding Size(mm) | 250 | 500 | 300 | 350 | 600 | 700 | |
| Capacity(t/h) | 70~130 | 130~200 | 90~180 | 120~250 | 180~320 | 240~400 | |
| Vibrating Feeder | GZD960×3800 | GZD960×3800 | GZD1100×4200 | GZD1100×4200 | GZD1100×4200 | GZD1300×4900 | |
| Main Belt Conveyor | B800×8.5M | B800×8.5M | B1000×9M | B1000×9M | B1000×9M | B1200×9.5M | |
| Side Belt Conveyor (optional) | B450×3M | B450×3M | B500×3.5M | B500×3.5M | B500×3.5M | B650×4M | |
| Electric control | standard | control box+ control panel | control box+ control panel | control box+ control panel | control box+ control panel | control box+ control panel | control box+ control panel |
| optional | Control box+ LCD | Control box+ LCD | Control box+ LCD | Control box+ LCD | Control box+ LCD | Control box+ LCD | |
| Hydraulic leg | standard | 4 | 4 | 4 | 4 | 4 | 4 |
| optional | 2 | 2 | 2 | 2 | 2 | 2 | |
| Hydraulic cyclinder | standard | 4 | 4 | 4 | 4 | 4 | 4 |
| optional | 5 | 5 | 5 | 5 | 5 | 5 | |
| Genset (optional) (Kw) | 180 | 270 | 270 | 380 | 380 | 440 | |
| Iron Separator (optional)(Kw) | RCYD(C)-8 | RCYD(C)-8 | RCYD(C)-10 | RCYD(C)-10 | RCYD(C)-10 | RCYD(C)-12 | |
