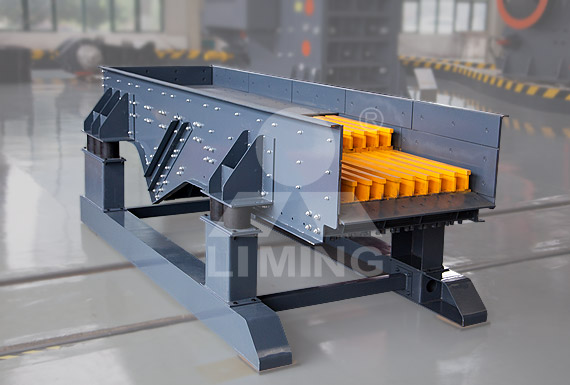

GF Series Vibrating Feeder is a light and efficient feeder specially manufactured for mobile crusher. It can match with Jaw Crusher, Primary Impact Crusher and Hammer Crusher, etc.
Specifications – Technical Data
| Model | Feeding Chute Size (mm) | Max Feeding Size (mm) | Max Capacity(t/h) | Bar Length (mm) | Power (kw) |
| GF0942(M) | 900×4200 | 500 | 280 | 2×700 | 2.9×2 |
| GF0942S | 900×4200 | 500 | 280 | 2×700 | 2.9×2 |
| GF1245(M) | 1200×4500 | 700 | 450 | 2×900 | 6×2 |
| GF1245S | 1200×4500 | 700 | 450 | 2×900 | 6×2 |
