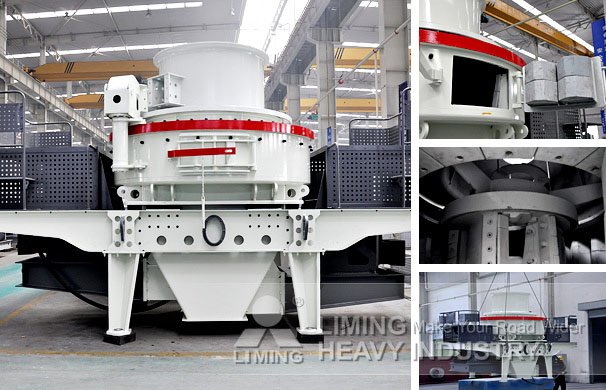

VSI5X Vertical Shaft Impact Crusher

Vertical shaft impact crusher is of high-power and low-consumption, which is designed depending on several years’ hard work and study of mechanical mining equipment. Sand Making Machine absorbs advanced technology of the same products of Barmac Company of America, now it is of the international level. Sand Making Machine plays an important role in crushing minerals into pieces. PCL vertical shaft impact crusher is widely used in all kinds of minerals, cement, refractory material, carborundum grain, glass raw material, construction sand, stone stock and all kinds of metallurgy slag, especially carborundum, sintered bauxite, magnesite, such materials are with features of very hard and anticorrosion. And Sand Making Machine is more productive than other kind of crushers.

Model Rotate speed of impeller (r/min) Max feed size (mm) Power (kW) Weight (including motor) (t) Capacity (t/h) Overall dimensions (mm)
PCL-600 2000-2600 30 2×30 5.6 10-30 2800×1550×2030
PCL-750 1600-2100 35 2×45 7.5 30-50 3300×1800×2440
PCL-900 1300-1700 40 2×55 12 50-80 3750×2120×2660
PCL-1050 1100-1450 45 2×110 16 70-120 4480×2450×2906
PCL-1250 950-1200 45 2×132 22 80-150 4563×2650×3176
PCL-1350 900-1200 50 2×160 26 120-200 5340×2940×3650

Notice: Any change of Sand Making Machine technical data shall not be advised additionally.
